Okuma
MA-400HA
MA-400HA
MA-500HII
MA-12500H

MA-H Series

When your business calls for a machine that delivers high productivity without compromising on accuracy, look to the SPACE CENTER MA-H series of horizontal machining centres. This proven design platform boasts a series of engineering features guaranteed to achieve results. A high-speed axis feed of 60 m/min provides near instant access to parts, improving productivity and nearly eliminating the need to hold inventory. A wide range of spindles offers full power from low to high revolution speed. And for extremely high accuracy, Okuma’s double sleeve spindle cooling system balances the spindle head temperature to prevent deformation and ensuring continuous, consistent accuracy. The MA-H series is the place to turn for the fast creation of precision-crafted components, a true advance in profitability.

Categories: , ,

Technical Specifications

[ ] Optional

MA-400HA

Table size [mm]
400 X 400
Axis travel [mm]
X: 560  / Y: 610  / Z: 625
Spindle speed [min-1]
8,000 [15,000], [20,000], [25,000], [35,000]
No. of tools
30 [40], [60], [100], [152], [198], [240]
Motor [kW]
15/11 [26/18,5], [30/22]

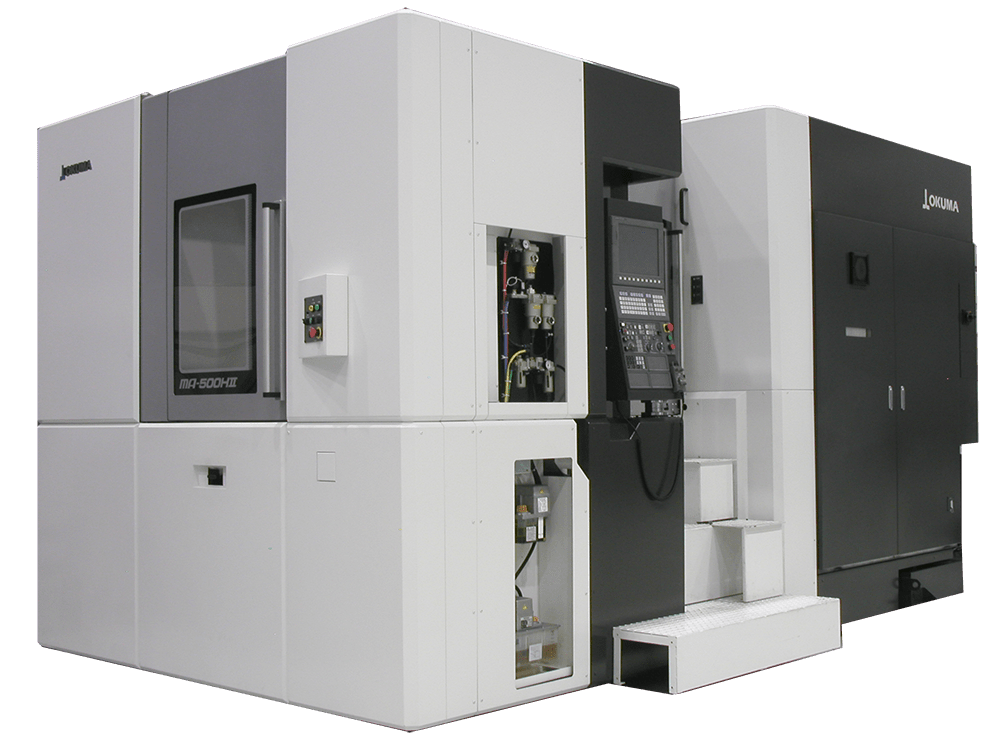

MA-500HII

Table size [mm]
500 X 500
Axis travel [mm]
X: 700 / Y: 900 / Z: 780
Spindle speed [min-1]
6,000 [12,000], [15,000], [20,000]
No. of tools
40 [60], [81], [111], [141], [171], [195], [225], [255], [285], [320], [400]
Motor [kW]
30/22 [37/26]

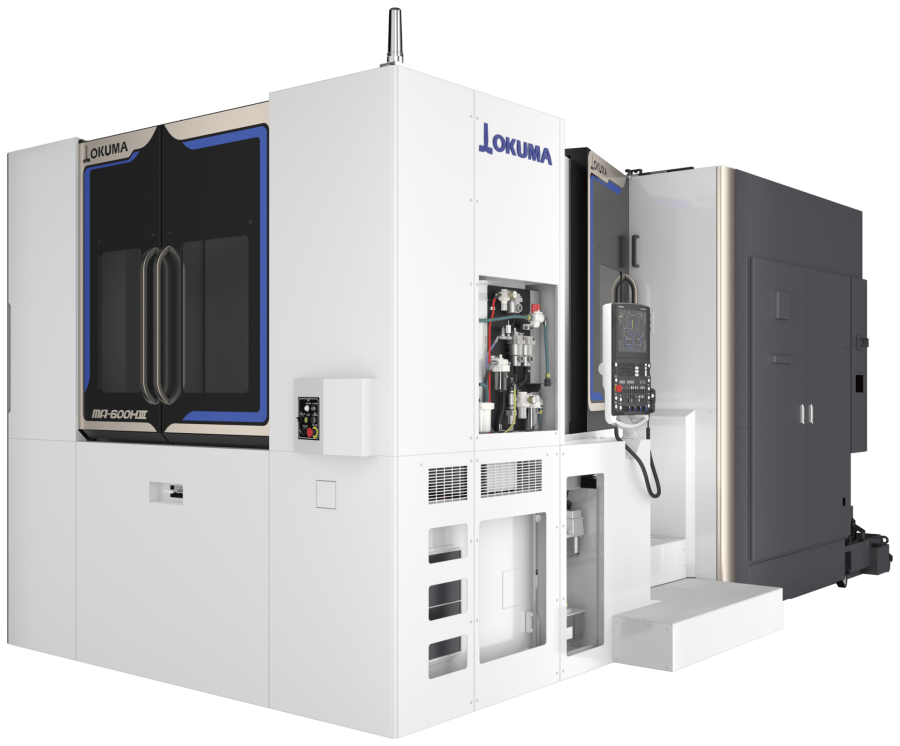

MA-600HIII

Table size [mm]
630 x 630
Axis travel [mm]
X: 1,050 / Y: 900 / Z: 1,000
Spindle speed [min-1]
6,000 [10,000], [12,000], [15,000], [20,000]
No. of tools
60 [81], [111], [141], [171], [195], [225], [255], [285], [320], [400]
Motor [kW]
30/22 [45/37], [37/26], [26/18,5]

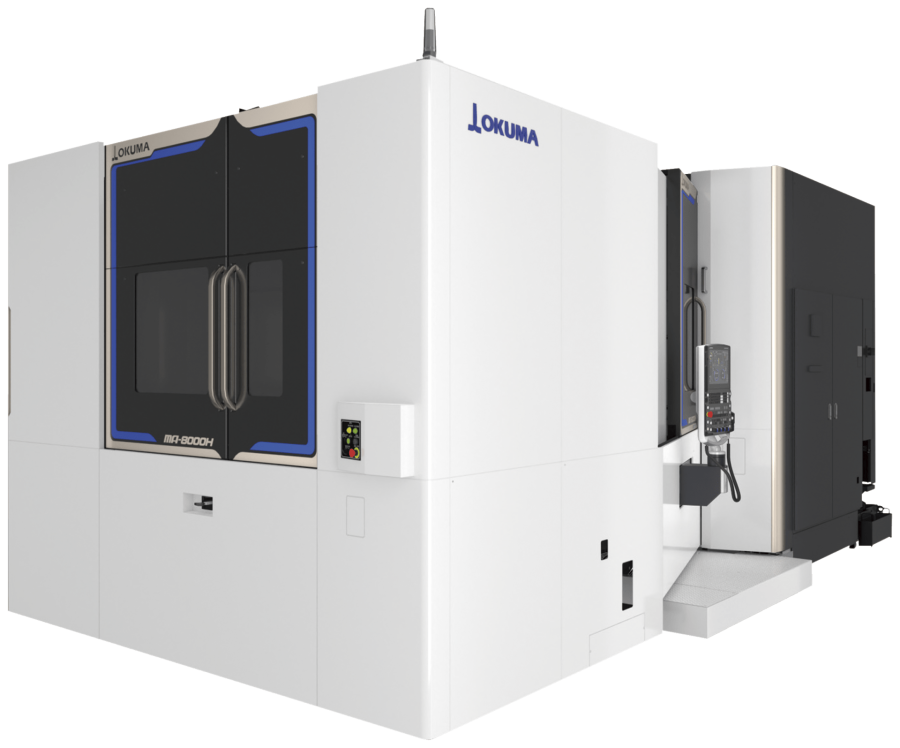

MA-8000H

Table size [mm]
800 x 800
Axis travel [mm]
X: 1,400 / Y: 1,200 / Z: 1,350
Spindle speed [min-1]
6,000 [10,000], [12,000]
No. of tools
60 [40], [81], [111], [141], [171], [195], [225], [255], [285], [320], [400]
Motor [kW]
30/22 [45/37], [45/30]

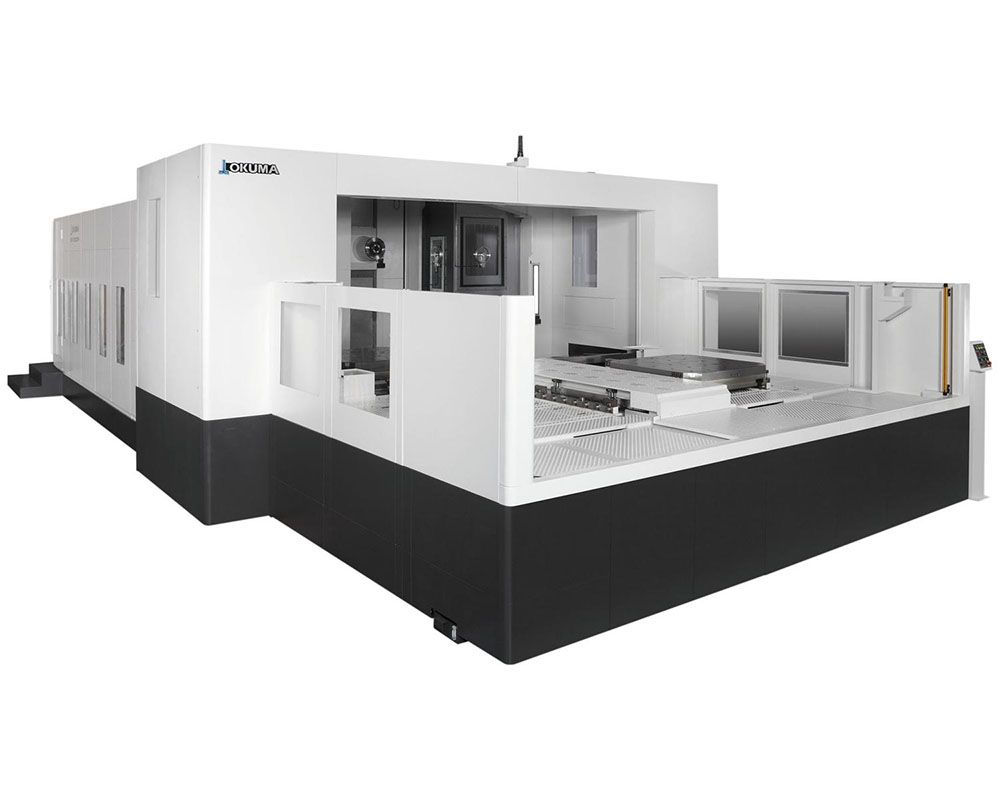

MA-12500H

Table size [mm]
1,250 x 1,250
Axis travel [mm]
X: 2,200 / Y: 1,600 / Z: 1,650
Spindle speed [min-1]
6,000 [4,500], [12,000]
No. of tools
81 [129], [177]
Motor [kW]
45/37 [40/37/30], [37/26]
Back
✖

Download Brochure

Please download the latest brochure for more information & full technical specification
